The Denali Timber Frame Pavilion features authentic heavy timber construction with exposed joinery that creates a bold architectural statement. Unlike lightweight pavilion kits, Denali structures use large structural beams and precision craftsmanship to deliver superior strength, durability, and timeless design.

Yes. Denali Timber Frame Pavilions are engineered to meet structural requirements for snow and wind loads. This makes them well suited for the demanding weather conditions commonly experienced throughout New England.

Yes. Denali pavilions can be customized in a variety of sizes, layouts, and roofing options. This allows the pavilion to be designed around your property and outdoor living space.

• Timber Material
  • Douglas Fir #1 & Better – S4S (Smooth) – FOCH (Free Of Center Heart) – Green
• Number Of Bents (Trusses)
  • Equal To One-Half Of The Number Of Posts
• Knee Braces
  • 4” X 10” With Curve – Lengths Vary Based On Width Of Pavilion
• Rafter Plates
  • 8” X 8”, 8” X 10” Or 8" x 12" – Varies Depending On Length Of Pavilion
• Ridge Beam
  • 6” X 12”, 8” X 12”, Or 8” X 14” – Varies Depending On Length Of Pavilion
• Roof Decking
  • 2X Tongue & Groove Decking #1 SPF
• Standard Roof Material
  • 1.5″ Musket Brown Drip Edge
  • Synthetic Roof Underlayment
  • GAF HDZ Timberline Shingles

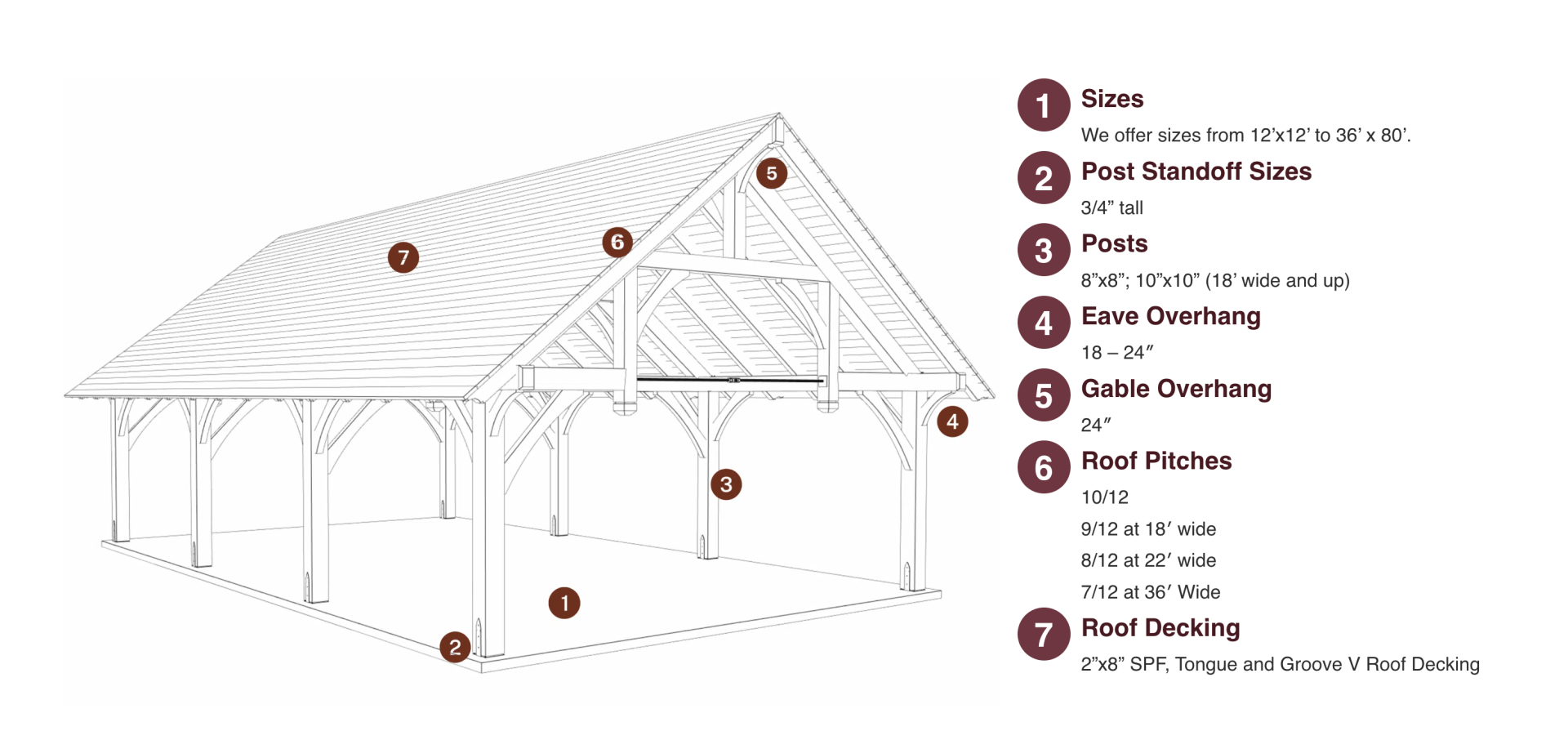

Popular sizes include 14×16, 16×20, 16×24, and larger custom configurations designed for outdoor living spaces.

• #1 Douglas fir beams
• 8" x 8" posts 16' wide or less
• 10" x 10" posts 18' wide or more
• 10/12 roof pitch 16' wide or less
• 9/12 roof pitch at 18' wide
• 8/12 roof pitch at 28' wide
• 7/12 roof pitch at 36' wide
• Eave overhang: 18" - 24"
• Gable overhang: 24"
• Exposed rafters & tongue & groove decking
• Extended ridge beam & rafter plates
• Lowered top chord in truss
• Architectural asphalt roof shingles

Most municipalities in Massachusetts, Rhode Island, Connecticut, New Hampshire, Vermont, and Maine require permits for permanent outdoor structures.

Timber frame pavilions typically require concrete footings or sonotube piers designed to support the structural post loads.

Yes, but some preparation is required.

For existing paver patios, a section of pavers approximately 24 to 30 inches in diameter is removed at each pavilion post location. Concrete piers are then installed beneath the patio.

The top of the pier is typically set about one inch below the paver level. After the pavilion is installed, the pavers are reinstalled and cut around the posts.

Post stand-offs are used to keep the timber posts elevated above the patio surface.

For smaller pavilions, concrete footers or piers are installed according to the provided drawings that specify the required locations and specifications.

For paver patios, the tops of the footers are typically installed just below the bottom of the pavers.

For concrete slabs with footers, the tops of the footers may either be installed just beneath the slab surface or level with the slab surface, depending on the installation approach.

If installing a new paver patio, it is often recommended to install the pavilion first and then install the pavers afterward.

Larger timber frame pavilions require properly sized concrete footers or piers installed according to the provided drawings.

For concrete slab patios, the tops of the footers may be installed level with the slab surface or approximately four inches below the finished patio surface.

Four-inch post stand-offs are typically used to keep the timber posts elevated above the patio surface.

In some installations, the pavilion structure is installed first and the concrete slab is poured afterward.

Each pavilion post is anchored to the concrete foundation using steel post brackets and wedge anchor bolts.

A flat concrete surface is required so the bracket can sit properly. During installation, the installers drill into the concrete and secure the structure using wedge anchor bolts designed for structural support.

No. Brackets or J-bolts should not be wet-set into the concrete ahead of time.

The installers will handle the anchoring process during installation to ensure proper alignment, correct placement of the posts, and structural stability.

This helps ensure the pavilion is installed accurately and safely.

Like all exterior wood structures, periodic maintenance is recommended to maintain the appearance and protection of the timber. Reapplying a high-quality exterior stain over time helps preserve the wood and extend its lifespan.

Cabot Australian Timber Oil

• Composition: Contains a blend of linseed oil, long-oil alkyds, and tung oil
• Purpose: Designed specifically for dense, exotic hardwoods (like mahogany, teak, and ipe)
• Appearance: Enhances the natural grain with a deeper, richer finish
• Protection: Provides good UV protection and water resistance
• Penetration: Superior penetration into dense hardwoods
• Drying time: Typically 24-48 hours between coats
• Reapplication: Usually requires reapplication every 1-2 years
• Application: Oil-based, so cleanup requires mineral spirits

Haley's Ultra Timber Frame Stain

• Composition: Typically a water-based acrylic formula with UV inhibitors
• Purpose: Formulated specifically for timber frames and large wooden structures
• Appearance: More consistent color with less dramatic grain enhancement
• Protection: Excellent UV and weather resistance
• Penetration: Better for softwoods and structural timbers
• Drying time: Generally faster drying (often 4-6 hours between coats)
• Reapplication: Typically lasts 3-5 years before needing reapplication
• Application: Easier cleanup with soap and water if water-based

The best choice depends on your specific project. Cabot is excellent for dense exotic woods and when you want to enhance natural grain patterns, while Haley's is better for timber frame structures and when you want longer-lasting protection with less frequent maintenance.

• Standard architectural asphalt roof shingles (available in several colors).
• Optional 5V & standing seam metal roofing (available in several colors).

East Coast Shed Inc. is based in Berkley, MA and serves customers across Massachusetts, Rhode Island, Connecticut, New Hampshire, Vermont & Maine.
